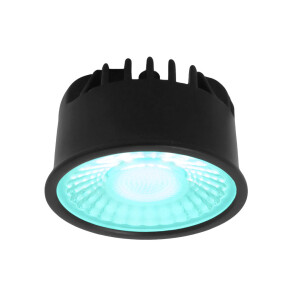

LED spotlight 24V, MR16, 5W, RGBW/3000K, CRI90

LED spotlight 24V, MR16, 5W, RGBW/3000K, CRI90

SKU: E10123

Category: Recessed Spotlights

Delivery time: 3 Workdays (AT - int. shipments may differ)

from 42,00 €

incl. 20% VAT , plus

Emilum

replaceable RGBW spot light bulb
compatible with GU10, GU5.3, and MR16 Installation and mounting frame
flat design (installation depth 30 mm), diameter 50 mm
Color temperature RGBW+3000K
extremely efficient with 561 lumens, 112 lm/W
high light quality with CRI90 min., typically CRI94 i The color rendering index (CRI) is a quality criterion for lighting and measures how naturally and accurately a light source renders colors in comparison to sunlight. The value ranges from 0 to 100, with 100 representing the best color rendering. A CRI ≤ 90 represents very high color rendering. Values below a CRI of 90 distort the natural colors of the illuminated objects
high color consistency: <3 SDCM (=Selected3-Step MacAdam i The 3-Step MacAdam Ellipse standard describes the color consistency of LEDs. It is based on the MacAdam ellipse principle, which specifies how much the light colors may differ from each other before the human eye perceives them as different. With 3-Step MacAdam, the deviation is within a very narrow tolerance range, so color differences are barely noticeable. This is particularly important for applications where uniform color rendering is required, such as in architectural or residential lighting. )
Batch tested and measured
60° beam angle
24Vdc PWM dimmable
Suitable for protected outdoor areas and damp locations

Configure

Einbaurahmen wählen:

Please select only one component.

kein Spot-Rahmen 0,00 €: passende Spot-Rahmen als Set bestellbar

Item details

Quantity: 1

Recessed spotlight frame, white, tiltable, 85mm +9,60 €

Einbaurahmen für Leuchtmittel mit 50mm:

Passend für GU10, MR16 und GU5.3 Leuchtmittel
Ideal für unsere Spot Leuchtmittel
Schwenkbarer Einbaustrahler-Rahmen
Hochwertiges Aluminiumgehäuse
Elegantes Design – Einbaurahmen in schwarz oder weiß
Werkzeuglose Montage mit Federspangen
geeignet für Deckenausschnitte von 68 bis 78 mm

Item details

Quantity: 1

Recessed Spotlight Frame, black, tiltable, 85mm +9,60 €

Installation frame LED Swing Spot:

available in various other designs (brushed, chrome, gold, black)
easy installation
timeless and simple design
can be replaced at any time
suitable for 24V LED spots of the Swing Spots series

Item details

Quantity: 1

Your configuration

incl. 20% VAT , plus shipping costs

pcs

Product highlights at a glance: 24V LED spotlight RGBW with 3000K 5W

Whether for new construction or modernization, our 24V recessed spotlights are the ideal solution for living spaces with high standards. With a diameter of 50 mm, the 5W spotlight (RGBW + 3000K) fits into all standard mounting frames for GU10, GU5.3, and MR16.

The low installation depth of only 30 mm makes the flat LED spotlight the first choice for tight ceiling installations. Despite its compact design, the replaceable light source impresses with its high energy efficiency (over 560 lumens in white light mode) and, above all, its impressive light quality: natural, pleasant light with high color rendering (CRI > 90), the finest color selection on the market (< 3 SDCM) and an optimized beam angle of 60°.

In addition to the warm white light color of 3000K – ideal for kitchens, dining areas, and other functional living areas – the spotlight offers integrated RGB color functionality: For atmospheric color accents, individual lighting moods, or targeted color design in living areas.
Thanks to 24V technology, the spotlight is gently dimmable, flicker-free (please note the PWM frequency of your dimmer), safer, and more durable than 230V versions.
A versatile light source that perfectly combines atmospheric lighting and functional light – safe, simple, smart.

Areas of application and recommendations for use for RGBW spots with 3000K

With 3000K, the RGBW spotlight provides a pleasant warm white light – ideal for modern living spaces where clarity and comfort are equally important. The integrated RGB spots expand the lighting experience with millions of colors, but not at the expense of efficient, natural, white basic lighting. This is exactly what the additional white channel is designed for. These spotlights are perfect for creating individual lighting moods in everyday life, whether for a movie night or a party with friends.

Quality features of our 24V spot bulbs

Technology you can rely on – our standards at Emilum

Natural color rendering – as authentic as daylight.
Whether it's wooden floors, furniture, or wall paint – good lighting determines how we feel in our homes. All our 24V LED spotlights reproduce colors naturally and authentically – for a harmonious atmosphere in every room.
this is made possible by a color rendering index (CRI) of over 90 – standard at Emilum, of course.

Consistent color tone – even with different batches.
Light only appears calm and high-quality when all spotlights have the same light color! This applies to initial installation as well as to lighting extensions and repurchases years later
→ We achieve this through strict sorting according to the 3-step MacAdam binning (< 3 SDCM) – a quality feature that hardly any of our competitors offer to this extent.

Uniform brightness – even with long cables.
Whether 2 or 10 spots in series: the light output remains constant, regardless of slight voltage losses on the cable. This creates a harmonious light pattern and simplifies cabling
→ Constant brightness thanks to voltage compensation between 23.0 and 26.4V

Stepless dimming – no flickering, no disturbances.
From bright work lighting to soft mood lighting: our spots can be dimmed with exceptional sensitivity and without flickering, even at low brightness levels and high PWM frequencies.
→ Professional flicker-free dimming behavior with high linearity.

Safe installation – no risk during wiring.
Even if plus and minus are mixed up, our spotlights remain undamaged. This protects your technology – and your nerves. → This is made possible by our integrated reverse polarity protection.

Reliability that lasts – 5-year warranty.
For us, quality does not end after the purchase. That is why we offer a voluntary 5-year warranty on all our spots – as a clear sign of our confidence in our products. This is made possible by development and production in Austria and our in-house lighting laboratory.

The 10 best tips for choosing LED spotlights

What should you look for when buying spotlights? We offer you simple but sound tips for choosing spotlights, specific application examples, best practice solutions, and much more.

With 10 tips for choosing the right LED spotlights

Installation made easy – suitable for any installation situation

Thanks to its low installation depth, the LED recessed spotlight is flat and therefore perfectly suited for tight installation situations where conventional spotlights would be too large. It can be easily installed in ceilings, walls, and even furniture. Whether you already have existing spot recessed frames or are converting them, the spot bulbs can be easily installed in them without the need for tools. Thanks to the separate system of bulbs and recessed frames, both the design and functionality of the lighting can be easily adapted at a later date.

Control and compatibility of the RGBW 5W spotlights

These RGBW LED spotlights combine high-quality white light (3000K) with an additional RGB color function – controlled via four individual 24V PWM channels for precise lighting control and atmospheric effects. The spots are compatible with PWM dimmers in the frequency range from 100 Hz to 15 kHz and can be seamlessly integrated into existing systems via DMX or DALI.
For reliable and smart control, we recommend our LED Dimmer RGBW with support for common smart home platforms. Up to 14 RGBW spots can be operated simultaneously per dimmer.

Further variants & matching accessories

This spotlight series has a modular design – choose from two power classes (5W and 7W) and six variants in different light colors. Tailor your selection to your application, your rooms, and the desired lighting mood. Thanks to their uniform technical basis, the various models can be flexibly combined – ideal for a consistent lighting solution throughout the entire living area.

The following alternatives are available in the 5W power class:

the MR16 tuneable white spot for adjustable color temperature and daylight control (HCL)
RGBW with 2700K instead of 3000K – the MR16 spot in RGBW with 2700K

If you have a greater installation depth and require more light, we recommend the same light source with more power: LED spot 24V, MR16, 7W, RGBW 3000K.

Would you prefer a complete solution with spot and frame in one product? Then discover our preconfigured spot sets: available as a flat, swivel RGBW spot with 3000K and 5W

Color temperature (K):	RGBW 3000K
Protection class (IP):	IP44
Power (W):	5W
Type of mounting:	Recessed surface-mounted
Installation depth:	30mm
Shipping weight:	0,06 kg
Item weight:	0,05 kg
Dimensions:	505030mm
Connection:	open strands
Special feature:	LED spot flat
Performance:	W=5W, R=1.8W, G=1W, B=0.6W
Rated voltage:	24Vdc -5% +10%
Cable:	150mm
Type:	Spot Lights
Dimmable:	yes (PWM)
Luminous flux:	W=562lm, R=40lm, G=62lm, B=22lm
Color rendering index:	CRI/Ra > 90
Electricity:	W=210mA, R=76mA, G=39mA, B=25mA
Beam angle:	60° full angle
Diameter:	50mm
Energy efficiency class:	E
warranty:	5 years
Color consistency:	< 3 SDCM

Datenblatt

Datenblatt

Messprotokoll

Messprotokoll

Eulumdaten
